Technical parameters ----

Operating system: Linux

Support video: avi,mp4

Storage space: 32G+16G

Communication interface: USBX2, HDMIX2, Audio, WIFI, GPS, 4G, port X2

LCD screen: TFT7 inch 1024X600 full-color touch screen

Load mode: HDMI/ gigabit network

Working temperature: - 20 ℃ to 75 ℃

Operating voltage: ac100-240v50-60hz

Maximum power: 40W

Packing weight: 2.70kg

Packing size: 400X175X135MM

System features ----

MI8 mainly solves the problems of old, complex, unstable and unreliable urban linkage system solutions.MI8 3 features: high integration, high reliability, high flexibility.Integration degree: the integrated gateway can be connected to WiFi, RJ45 and 4G CARDS in three ways.Integrated GPS timer.Integrated 7-inch LCD touch screen.HDMI video signal, gigabit network signal and 3.5mm audio output can be output.Reliability: Linux deep development is dedicated to nightview city lighting.Low power consumption no fan design.Can adapt to the environment - 20 ℃ ~ 75 ℃ scope of work.

Flexibility: simple and reliable node-end equipment, strong adaptability to the environment and complete unattended operation, the server adopts cloud platform to manage and monitor the project at any time across platforms and regions.Three security measures are adopted to ensure the safe and reliable transmission of network, terminal authentication and authorization, safe transmission of network data, and safe management of cloud server carrier.

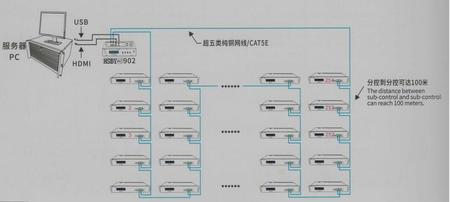

                               Wiring diagram

Technical parameters ----

Operating system: Linux

Video: mp4, mKv,avi,mov, FLV support

Storage space: 16G

Communication interface: USB, HDMI, serial port, network port X2

Carrying points: 1.04m

Working mode: online + offline

Working temperature: - 20 ℃ to 75 ℃

Operating voltage: ac100-240v50-60hz

Maximum power: 15W

Packing size: 335X215X80MM

System features ----

HSBY902 is committed to solving the three existing problems of landscape control system

Solve the large number of points with the picture card is not smooth;

Offline programming cannot be edited for long;

Large offline files cause slow storage and card reading speed;

Online offline integration, online support HDMI access, offline can play video files;

Maximum support 1920X1080 resolution, copy mode;

Can be connected to video splicer or video processor.

Technical parameters ----

This machine carries: 48 sets of RX203

Carrying points: 200,000

Working mode: online + offline

Working temperature: - 20 ℃ to 75 ℃

Operating voltage: ac100-240v50-60hz

Maximum power: 15W

Packing weight: 2.8kg

Packing size: 335X215X80MM

System characteristics ----

Online offline a celestial body that automatically switches to offline mode when there is no signal online;

Use standard Ethernet communication protocol, can be connected to the switch or optical fiber transceiver;

A set of system supports the centralized control of various lamps and lanterns and monochrome tricolor and four-color lamps and lanterns;

Support on-line monitoring of state, temperature, voltage and output port of sub-control;

RX203 can be connected to the computer through network cable;Support bidirectional redundant hot backup, main signal

In case of failure, the standby signal will be switched immediately;

Supports online addressing DMX512 lamps.

HSBY - RX203

Technical parameters ----

Loaded points: 4096/8192

Gray level: 32-65536

LED Easy Video

Working temperature: - 20 ℃ to 75 ℃

Operating voltage: ac100-240v50-60hz

Maximum power: 15W

Packing weight: 1.60kg

Package size: 290X150X45MM

System features ----

Two-way redundant hot backup, the main signal fault immediately switched to the standby signal;

100 megabit Ethernet communication, switchboard, fiber optic transceiver.

Set the control ID with one key and check the connection status of the controller with one key;

Set DMX512 lamp address with one key;

The design of pressure-line terminal is simple, convenient and reliable.

Support on - line monitoring of state, temperature, voltage and output port.

Technical parameters ----

Control port: 8Port

Port communication: TTL/RS485 carrying points: 4096/8192 points

Gray level: 256-65536

Working temperature: - 20 ℃ to 75 ℃

Operating voltage: ac100-240v50-60hz

Maximum power: 15W

Packing weight: 1.50KG

Packing size: 335X215X80MM

System features ----

Can be directly connected to the computer, also can be connected to the main control TX902 use.

Two-way redundant hot backup, the main signal failure will switch to the standby signal.Supports online addressing DMX512 lamps.Support firmware version control lamp program online upgrade.RX803 has 8 output channels, and TTL or RS485 signal can be selected by software.Load points can be selected by the software 512 or 1024 points.

Technical parameters ----

Carrying capacity: 31 HSBY4X512 sets

Gray level: 32-65536

Supporting software: LED Easy video or LED Easy

Loaded points: 65,536

Working mode: online + offline

Working temperature: - 20 ℃ to 75 ℃

Operating voltage: ac100-240v50-60hz

Maximum power: 15W

Packing weight: 1.45kg

Packing size: 290X155X45MM

System features ----

Online offline integration, online offline mode automatic switching without human intervention.

One key to write DMX lamp address code, no need to online, no need to plug card.

Support art-net protocol, compatible MADRIX software can achieve the perfect combination of sound and light.

The standard UDP network protocol is used between the master and the computer to connect switches and optical fiber transceivers.

Multiple control systems can be synchronized wirelessly through BTS, independent of distance and environment.

Multiple controllers can form LAN wireless linkage, which is convenient for debugging and later maintenance.

DMX512 interface is reserved in the system to connect to the DMX console, which can adjust the speed, brightness and scene in a single cycle in real time.

The controller supports the centralized control of a set of different IC lamps and lanterns and the centralized control of monochrome, three-color and four-color lamps and lanterns.

X512 / HSBY HSBY - 4-8 x512

Hsby-4x512 / hsby-8x512 comes with 4/8 output channels, each channel carries 512 points (standard DMX512 carries 170 points),

TTL signal or RS485 signal can be output, and the output end is protected against anti-connection and anti-induction lightning.

Voltage: v50 AC100-240-60 hz.

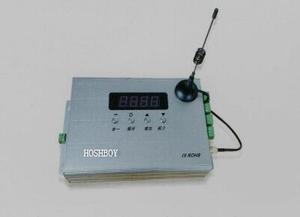

HSBY - 4 k / 8

Technical parameters ----

Carrying capacity: 4x1024/8x1024pixels

Gray level: 32-65536

Working temperature: - 20 ℃ to 75 ℃

Working voltage: dc5-48v                                    Maximum power: 8W                                        Supporting software: LED Easy

Packing weight: 0.70kg

Packing size: 190X125X45M

System features ----

No synchronization line, no need to turn on the power at the same time, the controller organization LAN synchronization;

Built-in 16 kinds of test results, power on light without SD card;1 key to write DMX address;

Master slave mode, only need to switch the host scene, slave machine automatically switch scene with the host;

Extended wireless coverage, especially for river, bridge, road and other lighting projects.

No matter how far away you are, don't worry;

Group control function, wash wall lamp, high power lamp, guardrail tube and so on can be controlled in groups.
